Intent as API

Overview

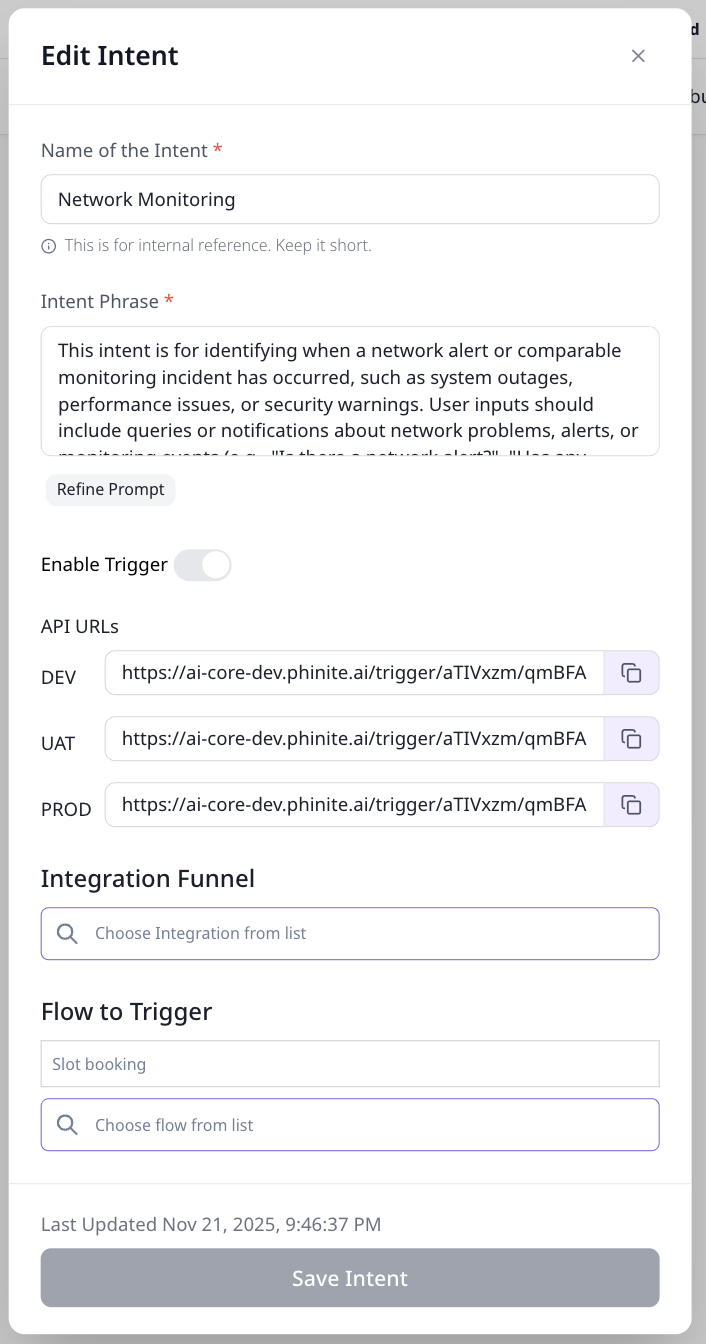

The Edit Intent screen allows you to expose an intent as an API trigger. When enabled, this intent can be invoked externally via an HTTP API call. Triggering this API will start the configured flow in the selected integration channel (for example, Microsoft Teams, Slack, etc.). This is useful when you want external systems (monitoring tools, backend services, etc.) to programmatically initiate a conversation or workflow inside a supported integration. Screenshot2026 02 10at1 55 08AM

Enabling an Intent as an API

To enable an intent as an API:

Open the Edit Intent modal.
Toggle Enable Trigger to ON.
Select an Integration from the Integration Funnel.
Choose a Agent Graph to Trigger for that integration.
Save the intent.
Update the build with new intent version.

Once enabled, the platform generates API URLs for different environments:

DEV
UAT
PROD

These endpoints can be called to trigger the intent.

How It Works

When the generated API endpoint is called:

The request is authenticated using a Bearer Token (API key configured at the workspace level).
The intent is matched and executed.
The selected flow is triggered.
The conversation starts in the chosen integration channel.

Example

If:

The Integration Funnel is set to Microsoft Teams
The selected flow is linked to a Teams bot/channel

Then:

Calling the API will initiate a conversation in the configured Teams channel or bot.

Authentication

All API requests must include a valid Bearer Token in the Authorization header.

Authorization: Bearer <YOUR_WORKSPACE_API_KEY>

Requests without a valid token will be rejected.

API Request Format

Endpoint

Use the environment-specific API URL generated in the Edit Intent screen:

POST /trigger/{workspace_id}/{intent_id}/{environment}

(Exact URL varies by environment: DEV / UAT / PROD)

Request Payload

The API accepts the following JSON payload:

{
  "message": "",
  "user_variables": {"key1":"value1", "key2":"value2"}
}

Field Descriptions

Field	Type	Description
`message`	String	The first message sent to the flow when the session starts. This can be empty if not required.
`user_variables`	Object	Session variables to initialize the conversation with. These variables will be available throughout the flow.

Special Case: Twilio Integration

When using Twilio as the integration channel, an additional parameter is required to initiate outbound calls:

Additional Field for Twilio

Key	Value
`to_phone_number`	The destination phone number in E.164 format (e.g., `+19999999999`)

Session Initialization

The message field is treated as the first user message in the conversation.
The user_variables are injected at session start.
Any variables passed here will be accessible inside the flow logic, conditions, and tools.

Example Payload

{
  "message": "Network alert detected for server-01",
  "user_variables": {
    "severity": "critical",
    "source": "monitoring_service",
    "server": "server-01"
  }
}

This ensures the session starts with all required context already available.

API Usage Examples

All examples below demonstrate how to trigger an intent API using a API KEY and a JSON payload.

Request Details

Method: POST
Authorization: Bearer Token (workspace-level)
Content-Type: application/json

Sample Payload

Replace:

API_URL with your DEV / UAT / PROD endpoint
YOUR_BEARER_TOKEN with your workspace token

curl -X POST "https://app.phinite.ai/api/v1/ai/trigger/{workspace_id}/{trigger_id}/{environment}" \
  -H "Authorization: Bearer workspace_api_key" \
  -H "Content-Type: application/json" \
  -d '{
    "message": "start the task",
    "user_variables": {
      "key1": "value1",
      "key2": "value2"
    }
  }'

import requests
import json

url = "https://app.phinite.ai/api/v1/ai/trigger/{workspace_id}/{trigger_id}/{environment}"

payload = json.dumps({
  "message": "start the task",
  "user_variables": {
    "key1": "value1",
    "key2": "value2"
  }
})
headers = {
  'Authorization': 'Bearer workspace_api_key',
  'Content-Type': 'application/json'
}

response = requests.request("POST", url, headers=headers, data=payload)

print(response.text)

const axios = require('axios');
let data = JSON.stringify({
  "message": "start the task",
  "user_variables": {
    "key1": "value1",
    "key2": "value2"
  }
});

let config = {
  method: 'post',
  maxBodyLength: Infinity,
  url: 'https://app.phinite.ai/api/v1/ai/trigger/{workspace_id}/{trigger_id}/{environment}',
  headers: {
    'Authorization': 'Bearer workspace_api_key',
    'Content-Type': 'application/json'
  },
  data : data
};

axios.request(config)
.then((response) => {
  console.log(JSON.stringify(response.data));
})
.catch((error) => {
  console.log(error);
});

OkHttpClient client = new OkHttpClient().newBuilder()
  .build();
MediaType mediaType = MediaType.parse("application/json");
RequestBody body = RequestBody.create(mediaType, "{\n    \"message\": \"start the task\",\n    \"user_variables\": {\n      \"key1\": \"value1\",\n      \"key2\": \"value2\"\n    }\n  }");
Request request = new Request.Builder()
  .url("https://app.phinite.ai/api/v1/ai/trigger/{workspace_id}/{trigger_id}/{environment}")
  .method("POST", body)
  .addHeader("Authorization", "Bearer workspace_api_key")
  .addHeader("Content-Type", "application/json")
  .build();
Response response = client.newCall(request).execute();

<?php

$curl = curl_init("API_URL");

$data = [
    "message" => "Network alert detected for server-01",
    "user_variables" => [
        "severity" => "critical",
        "source" => "monitoring_service",
        "server" => "server-01"
    ]
];

curl_setopt_array($curl, [
    CURLOPT_RETURNTRANSFER => true,
    CURLOPT_POST => true,
    CURLOPT_HTTPHEADER => [
        "Authorization: Bearer YOUR_BEARER_TOKEN",
        "Content-Type: application/json"
    ],
    CURLOPT_POSTFIELDS => json_encode($data)
]);

$response = curl_exec($curl);
curl_close($curl);

echo $response;

package main

import (
  "fmt"
  "strings"
  "net/http"
  "io"
)

func main() {

  url := "https://app.phinite.ai/api/v1/ai/trigger/{workspace_id}/{trigger_id}/{environment}"
  method := "POST"

  payload := strings.NewReader(`{
    "message": "start the task",
    "user_variables": {
      "key1": "value1",
      "key2": "value2"
    }
  }`)

  client := &http.Client {
  }
  req, err := http.NewRequest(method, url, payload)

  if err != nil {
    fmt.Println(err)
    return
  }
  req.Header.Add("Authorization", "Bearer workspace_api_key")
  req.Header.Add("Content-Type", "application/json")

  res, err := client.Do(req)
  if err != nil {
    fmt.Println(err)
    return
  }
  defer res.Body.Close()

  body, err := io.ReadAll(res.Body)
  if err != nil {
    fmt.Println(err)
    return
  }
  fmt.Println(string(body))
}

require "uri"
require "json"
require "net/http"

url = URI("https://app.phinite.ai/api/v1/ai/trigger/{workspace_id}/{trigger_id}/{environment}")

https = Net::HTTP.new(url.host, url.port)
https.use_ssl = true

request = Net::HTTP::Post.new(url)
request["Authorization"] = "Bearer workspace_api_key"
request["Content-Type"] = "application/json"
request.body = JSON.dump({
  "message": "start the task",
  "user_variables": {
    "key1": "value1",
    "key2": "value2"
  }
})

response = https.request(request)
puts response.read_body

Twilio-Specific Example

curl --location --globoff 'https://app.phinite.ai/api/v1/ai/trigger/{workspace_id}/{trigger_id}/{environment}?to_phone_number=+19999999999' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer workspace_api_key' \
--data '{"message":"start the task","user_variables": {"key1":"value1","key2":"value2"}}'

import requests
import json

url = "https://app.phinite.ai/api/v1/ai/trigger/{workspace_id}/{trigger_id}/{environment}?to_phone_number=+19999999999"

payload = json.dumps({
  "message": "start the task",
  "user_variables": {
    "key1": "value1",
    "key2": "value2"
  }
})
headers = {
  'Content-Type': 'application/json',
  'Authorization': 'Bearer workspace_api_key'
}

response = requests.request("POST", url, headers=headers, data=payload)

print(response.text)

const axios = require('axios');
let data = JSON.stringify({
  "message": "start the task",
  "user_variables": {
    "key1": "value1",
    "key2": "value2"
  }
});

let config = {
  method: 'post',
  maxBodyLength: Infinity,
  url: 'https://app.phinite.ai/api/v1/ai/trigger/{workspace_id}/{trigger_id}/{environment}?to_phone_number=+19999999999',
  headers: {
    'Content-Type': 'application/json',
    'Authorization': 'Bearer workspace_api_key'
  },
  data : data
};

axios.request(config)
.then((response) => {
  console.log(JSON.stringify(response.data));
})
.catch((error) => {
  console.log(error);
});

package main

import (
  "fmt"
  "strings"
  "net/http"
  "io"
)

func main() {

  url := "https://app.phinite.ai/api/v1/ai/trigger/{workspace_id}/{trigger_id}/{environment}?to_phone_number=+19999999999"
  method := "POST"

  payload := strings.NewReader(`{"message":"start the task","user_variables": {"key1":"value1","key2":"value2"}}`)

  client := &http.Client {
  }
  req, err := http.NewRequest(method, url, payload)

  if err != nil {
    fmt.Println(err)
    return
  }
  req.Header.Add("Content-Type", "application/json")
  req.Header.Add("Authorization", "Bearer workspace_api_key")

  res, err := client.Do(req)
  if err != nil {
    fmt.Println(err)
    return
  }
  defer res.Body.Close()

  body, err := io.ReadAll(res.Body)
  if err != nil {
    fmt.Println(err)
    return
  }
  fmt.Println(string(body))
}

<?php

$curl = curl_init();

curl_setopt_array($curl, array(
  CURLOPT_URL => 'https://app.phinite.ai/api/v1/ai/trigger/{workspace_id}/{trigger_id}/{environment}?to_phone_number=+19999999999',
  CURLOPT_RETURNTRANSFER => true,
  CURLOPT_ENCODING => '',
  CURLOPT_MAXREDIRS => 10,
  CURLOPT_TIMEOUT => 0,
  CURLOPT_FOLLOWLOCATION => true,
  CURLOPT_HTTP_VERSION => CURL_HTTP_VERSION_1_1,
  CURLOPT_CUSTOMREQUEST => 'POST',
  CURLOPT_POSTFIELDS =>'{"message":"start the task","user_variables": {"key1":"value1","key2":"value2"}}',
  CURLOPT_HTTPHEADER => array(
    'Content-Type: application/json',
    'Authorization: Bearer workspace_api_key'
  ),
));

$response = curl_exec($curl);

curl_close($curl);
echo $response;

require "uri"
require "json"
require "net/http"

url = URI("https://app.phinite.ai/api/v1/ai/trigger/{workspace_id}/{trigger_id}/{environment}?to_phone_number=+19999999999")

https = Net::HTTP.new(url.host, url.port)
https.use_ssl = true

request = Net::HTTP::Post.new(url)
request["Content-Type"] = "application/json"
request["Authorization"] = "Bearer workspace_api_key"
request.body = JSON.dump({
  "message": "start the task",
  "user_variables": {
    "key1": "value1",
    "key2": "value2"
  }
})

response = https.request(request)
puts response.read_body

Response Examples

Success Response (200 OK)

{
    "workflow_id": "uuid-12345",
    "response": {
        "flow_transfer": "Agent Graph shift from Trigger to {channel} Conversational"
    },
    "status": "waiting_for_input",
    "requires_input": true,
    "error": null
}

Twilio Success Response (200 OK)

When triggering a Twilio outbound call, the response includes call-specific details:

{
    "status": "call_initiated",
    "call_sid": "sid-uuid-12345",
    "to_number": "to_phone_number",
    "from_number": "from_your_twilio_integration",
    "call_status": "queued",
    "tracking_id": "tracking-uuid-12345",
    "flow_id": "flow-uuid-12345",
    "environment": "env",
    "integration_id": "integration-uuid-12345",
    "user_variables": {"key1":"value1","key2":"value2"},
    "message": "Outbound call initiated successfully. The flow will start when the call is answered.",
    "response": {
        "type": "outbound_call",
        "details": "Call initiated and will connect to flow upon answer"
    }
}

Error Responses

{
  "detail": "Invalid authentication credentials"
}

{
    "detail": [
        {
            "type": "dict_type",
            "loc": [
                "body",
                "user_variables"
            ],
            "msg": "Input should be a valid dictionary",
            "input": "string"
        }
    ]
}

{
  "detail": "Process query failed: 'Request' object has no attribute 'get'"
}

Common Use Cases

Triggering incident workflows from monitoring systems
Starting conversations from backend services
Initiating alerts in Teams or other channels
Passing structured context into a flow at runtime
Twilio: Initiating outbound calls for notifications, reminders, or follow-ups

Notes & Best Practices

Ensure the integration channel is properly configured and connected.
Always validate the Bearer Token before deploying to PROD.
Use user_variables for structured data instead of embedding everything in the message.
Keep the intent name short and descriptive for internal reference.
Test thoroughly in DEV environment before promoting to UAT/PROD.
For Twilio: Always provide phone numbers in E.164 format (e.g., +1234567890) to ensure proper call routing.

1. Getting Started

2. Building Assistants

3. Graph Studio (Workflow Builder)

4. DevStudio (Tool Builder)

5. Triggers & Intents

6. Builds & Environments

7. Observability & Billing

8. User Management

9. Reference

10. Troubleshooting & Support

Overview

Enabling an Intent as an API

How It Works

Example

Authentication

API Request Format

Endpoint

Request Payload

Field Descriptions

Special Case: Twilio Integration

Additional Field for Twilio

Session Initialization

Example Payload

API Usage Examples

Request Details

Sample Payload

Twilio-Specific Example

Response Examples

Success Response (200 OK)

Twilio Success Response (200 OK)

Error Responses

Common Use Cases

Notes & Best Practices

​Overview

​Enabling an Intent as an API

​How It Works

​Example

​Authentication

​API Request Format

​Endpoint

​Request Payload

​Field Descriptions

​Special Case: Twilio Integration

​Additional Field for Twilio

​Session Initialization

​Example Payload

​API Usage Examples

​Request Details

​Sample Payload

​Twilio-Specific Example

​Response Examples

​Success Response (200 OK)

​Twilio Success Response (200 OK)

​Error Responses

​Common Use Cases

​Notes & Best Practices

Overview

Enabling an Intent as an API

How It Works

Example

Authentication

API Request Format

Endpoint

Request Payload

Field Descriptions

Special Case: Twilio Integration

Additional Field for Twilio

Session Initialization

Example Payload

API Usage Examples

Request Details

Sample Payload

Twilio-Specific Example

Response Examples

Success Response (200 OK)

Twilio Success Response (200 OK)

Error Responses

Common Use Cases

Notes & Best Practices
