Overview

Phinite’s Twilio predefined tool lets workspace assistants call Twilio APIs through DevStudio after you save a connection under Integrations → Predefined tools. Send SMS/MMS, make voice calls, manage recordings, accounts, phone numbers, conferences, and Conversations via the Twilio REST API.
Predefined tools require a saved connection before they appear in Graph Studio’s tool picker. See Predefined Tools in GraphStudio.

​
What this integration enables

  • Automate workflows using this predefined tool from agent graphs
  • Connect once under Integrations and reuse across assistants
  • Enable individual subtools per agent in Graph Studio

​
Required credentials

  • Account SID account_sid (required)
  • Auth Token auth_token (required)

​

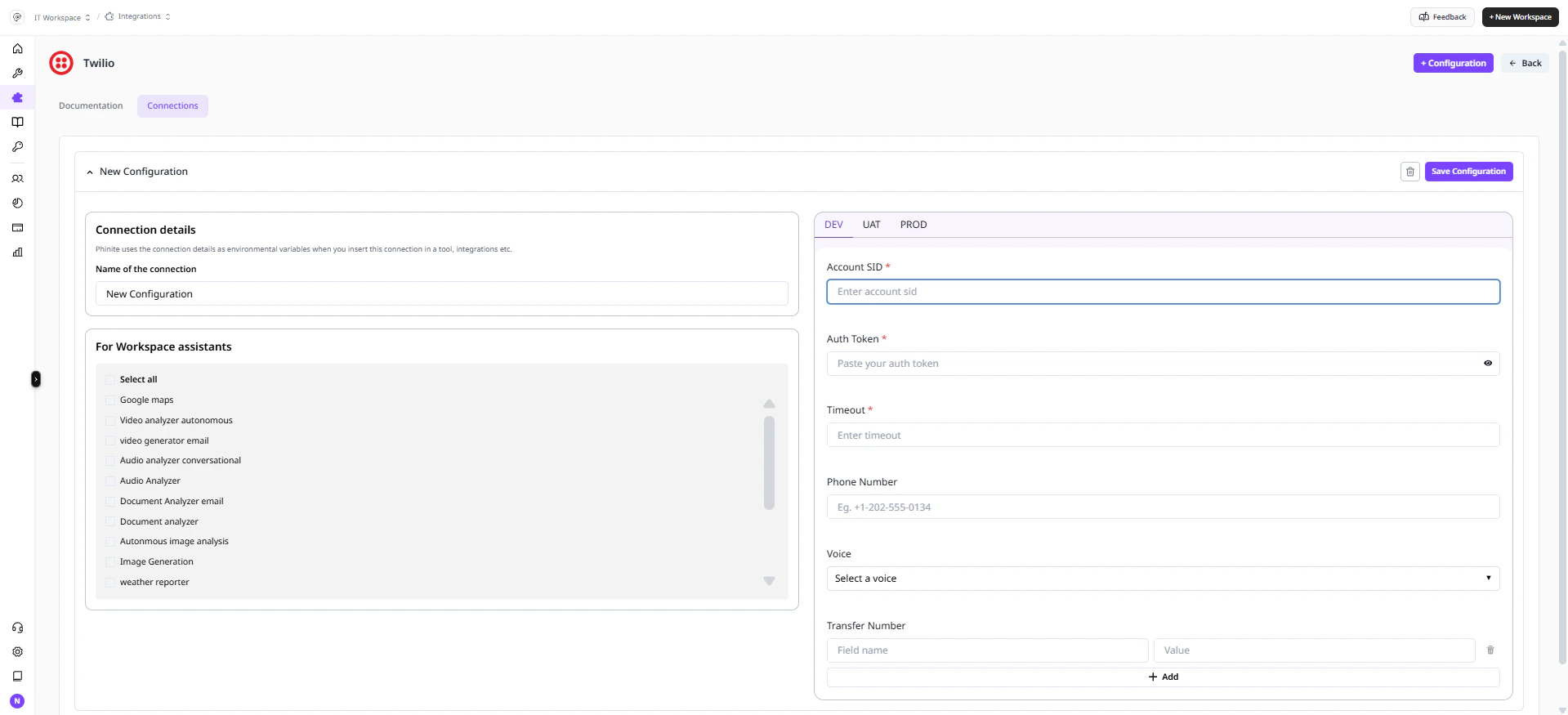

Setup steps

  1. In the Twilio Console copy Account SID, Auth Token, and any phone number SIDs you need.
  2. Log into your Phinite workspace at app.phinite.ai
  3. Navigate to Integrations → Predefined tools
  4. Select Twilio
  5. Click + Add Configuration
  6. Enter the credential fields listed above
  7. Select assistants that should use this connection
  8. Click Save Configuration

​
Configure in Graph Studio

  1. Open an agent in Graph Studio
  2. Select the agent node → Tools tab → Add a new tool
  3. Choose TwilioTool (or search for Twilio)
  4. Select your saved connection or add a new one
  5. Enable the subtools your workflow needs and save

​
Predefined tools

Phinite provides 33 subtools for Twilio:
  • Send Message: Send an SMS or MMS message via Twilio
  • Get Message: Fetch a single message by its SID
  • List Messages: List messages with optional filters (to, from, date_sent). Results sorted by DateSent descending.
  • Update Message: Update (redact) a message body. Set body to empty string to redact.
  • Delete Message: Delete a message record by SID
  • Make Call: Initiate an outbound voice call via Twilio. Requires a TwiML URL or inline TwiML.
  • Get Call: Fetch details of a specific call by its SID
  • List Calls: List calls with optional filters (to, from, status, start_time). Results sorted by StartTime descending.
  • Update Call: Modify an in-progress call - redirect to new TwiML, or end the call by setting status to ‘completed’ or ‘canceled’.
  • Delete Call: Delete a call record from your account. Cannot delete an in-progress call.
  • List Recordings: List recordings in your account, optionally filtered by call SID or date
  • Get Recording: Fetch metadata of a specific recording by SID
  • Delete Recording: Delete a recording by SID
  • Get Account: Fetch details of the current Twilio account (or a specific sub-account)
  • List Accounts: List accounts (sub-accounts) under the main account
  • List Incoming Phone Numbers: List incoming phone numbers owned by the account
  • Get Incoming Phone Number: Fetch details of a specific incoming phone number by SID
  • Buy Phone Number: Purchase (provision) a new incoming phone number. The number must be available.
  • List Conferences: List conferences in your account, optionally filtered by status or friendly name
  • Get Conference: Fetch details of a specific conference by SID
  • Create Conversation: Create a new Twilio Conversation (multi-party messaging thread).
  • Get Conversation: Retrieve a specific Twilio Conversation by SID or unique name.
  • List Conversations: List all Twilio Conversations.
  • Update Conversation: Update a Twilio Conversation (e.g. change state, friendly name).
  • Delete Conversation: Delete a Twilio Conversation by SID.
  • Add Conversation Participant: Add a participant to a Twilio Conversation. For SMS provide messaging_binding_address and messaging_binding_proxy_address. For chat provide identity.
  • List Conversation Participants: List all participants in a Twilio Conversation.
  • Get Conversation Participant: Get a specific participant in a Twilio Conversation.
  • Remove Conversation Participant: Remove a participant from a Twilio Conversation.
  • Send Conversation Message: Send a message in a Twilio Conversation.
  • List Conversation Messages: List messages in a Twilio Conversation.
  • Get Conversation Message: Get a specific message in a Twilio Conversation.
  • Delete Conversation Message: Delete a message from a Twilio Conversation.

​
Documentation & resources

  • Official documentation: https://www.twilio.com/docs/api
  • Phinite documentation: Twilio

​
Notes

  • Store API keys and tokens securely; many providers show secrets only once
  • Use separate connections for Dev, UAT, and Prod environments where possible
  • Test with a minimal subtool call after saving credentials
