Types of Session Variables

Session variables in your flow can be categorized into several types based on how they are created and managed.

Capture Variables

Capture Variables are automatically captured by the Agent during execution based on the description you provide. The Agent identifies and stores relevant information as the workflow progresses.

Tool-Returned Capture Variables

These variables are returned by tools during execution, including both custom and predefined tools.

For custom tools, simply return the variables in the capture_variables dictionary, and they will be automatically stored as session variables(each key stored as seperate session variable).

User Variables

User Variables are defined in the API payload before executing an autonomous or conversational flow. These allow you to pass initial data into your workflow.

System Variables

The following system variables are automatically set in every session:

• workflow_id - A unique identifier assigned to each workflow execution
• caller_number - Available during voice calls, containing the caller’s phone number
• conversation_history - Available throughout the particular workflow execution

Predefined Tool Variables

When using predefined tools, the entire output object returned by the tool is saved as a session variable.

Example: Telegram Tool

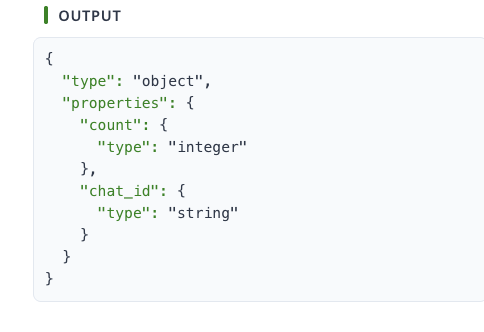

For the telegram.get_chat_member_count tool (from the Telegram integration), the complete output object is stored in the session and can be accessed using dot notation:

telegram.get_chat_member_count.count
telegram.get_chat_member_count.chat_id

Using in Custom Tools

You can access these variables in your custom tools like this:

# Retrieve the entire output object
telegram_output = inputs.get('telegram.get_chat_member_count')

# Access specific fields
chat_id = telegram_output.get("chat_id")
member_count = telegram_output.get("count")

Note

The session variable name follows the pattern: {tool_name}.{subtool_name}
