Agent Cards is the project-scoped view of A2A registry builds for each exposed agent graph. Use it to inspect build history, compare test and live deployments, and promote a build to production.Documentation Index
Fetch the complete documentation index at: https://docs.phinite.ai/llms.txt
Use this file to discover all available pages before exploring further.
Open Agent Cards
Route:/{organisation}/workspace/{workspaceId}/projects/{projectId}/agent-cards
The page appears in the project sidebar for conversational and voice assistants when workspace.sidebar.agent_registry is granted (same permission as workspace Agent Registry). Like other registry features, it is typically visible in local/dev environments.
You can also reach Agent Cards from Graph Studio via Configure Agent → Expose as Agent → See Agent builds.
Page layout
| Element | Description |
|---|---|
| Title | Agent Cards with total build count |
| Agentic graph dropdown | Filter builds by agent graph (flowid); options from GET /a2a-registry?flow_list=true |
| Build table | Rows per registry build: build number, status, name, description, tools/env counts, updated date, author |
| Push To Prod | Opens promote modal to move a test build to live |
Build rows
Each row represents onePOST /a2a-registry registration (one expose action). Key fields:
| Column / field | Source | Notes |
|---|---|---|
| Build number | build_no | Auto-incremented per workspace + agent graph |
| Status | test or live | Badge: TEST or LIVE |
| Name / description | agent_card | Agent Card from expose wizard |
| Tools / env | tool_config, env_variable | Exported configuration counts |
| Registry ID | a2aregistryid | Used in test hosted URLs |
Test vs live
| Status | Purpose | Hosted URL |
|---|---|---|
| Test | Validate Agent Card, skills, and integrations before broad use | {gateway}/api/v1/ai/a2a/{flowId}/{registryId} |
| Live | Production endpoint for the agent graph (only one live row per graph per workspace) | {gateway}/api/v1/ai/a2a/{flowId} |

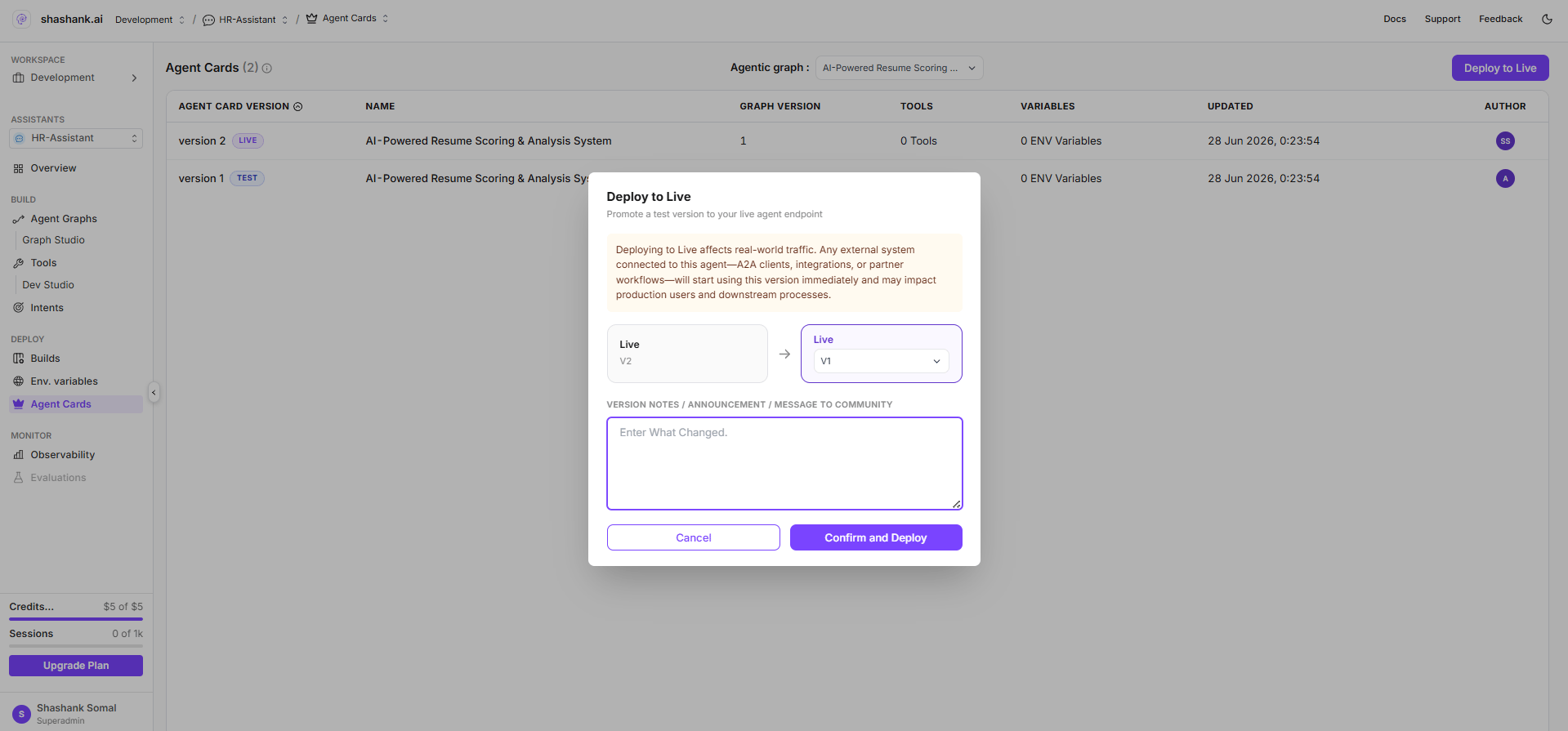

Promote to production
- Click Push To Prod (tooltip: Push the selected build to production).
- In the modal, select the test build to promote.
- Confirm promotion.
- The chosen build becomes
live. - Any previous live build for the same agent graph in the workspace is demoted to
test. - Visibility on the Agent Card is unchanged by promotion—only deployment status updates.
Create a new build
New builds are created from Graph Studio—not from the Agent Cards page directly:- Publish the agent graph.
- Expose as External Agent via Configure Agent → Create New Build.
- Return to Agent Cards to compare the new test row with existing builds.
Permissions
| Action | Permission |
|---|---|
| View builds | assistants.flows:read |
| Promote to live | assistants.flows:update |
| Sidebar entry | workspace.sidebar.agent_registry |
